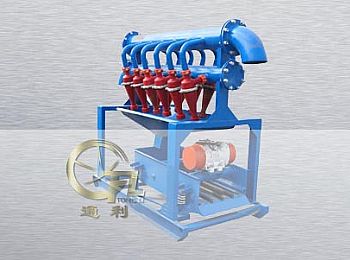

Hydrocyclone
Product： Hydrocyclone
Type: FX series
Type: FX series
1,Overview
Hydrocyclone is mainly applied to the process of second paragraph grinding, coarse or concentrate re-grinding and the closed-circuit composed by mechanical grading machine, its grading operation is according to the particle size. The device has features of simple structure, long service life, large disposal capability, small land covering and no driving power consumption. It is a high efficient grading and de-sliming equipment of fine -particle material. It is widely used in concentrator of nonferrous and ferrous, chemical, pharmaceutical, ceramics and other industries.
2,Technical Specifications
|
Model
|
Canister Interior Diameter
（mm） |
Cone Angle
（ｏ） |
Overfall Pipe Dia.
（mm） |
Bottom Exit Dia.
（mm） |
Max.
Permitted Feeding Grsanularity （mm） |
Feeding Pressure
（Mpa） |
Processing Capacity
（m3/h） |
Classification
Granularity （um） |
Weight （Kg） |
|
|
FX660
|
660
|
20
|
180~240
|
80~150
|
16
|
0.03-0.2
|
250~350
|
74-220
|
995
|
|
|
FX500
|
500
|
20
|
130~200
|
35~100
|
10
|
0.03~0.3
|
140~220
|
74~200
|
495
|
|
|
15
|
74~150
|
540
|
|
|||||||
|
FX350
|
350
|
20
|
80~120
|
30~70
|
6
|
0.04~0.3
|
60~100
|
50~150
|
182
|
|
|
15
|
50~120
|
230
|
|
|||||||
|
FX300
|
300
|
20
|
65~115
|
20~50
|
5
|
0.04~0.3
|
45~85
|
50~150
|
108
|
|
|
15
|
40~100
|
169
|
|
|||||||
|
FX250
|
250
|
20
|
60~100
|
16~45
|
3
|
0.06~0.35
|
40~60
|
40~100
|
72
|
|
|
15
|
40~100
|
77
|
|
|||||||
|
10
|
30~100
|
83
|
|
|||||||
|
FX200
|
200
|
20
|
40~65
|
16~32
|
2
|
0.06~0.35
|
25~40
|
40~100
|
60
|
|
|
15
|
30~100
|
64
|
|
|||||||
|
10
|
30~100
|
69
|
|
|||||||
|
FX150
|
150
|
20
|
30~45
|
8~22
|
1.5
|
0.06~0.35
|
11~20
|
30~74
|
20
|
|
|
15
|
30~74
|
22
|
|
|||||||
|
8
|
30~74
|
60
|
|
|||||||
|
FX125
|
125
|
17
|
25~40
|
8~18
|
1
|
0.06~0.35
|
8~15
|
20~100
|
10
|
|
|
8
|
20~74
|
12
|
|
|||||||
|
FX100
|
100
|
20
|
20~40
|
8~18
|
1
|
0.06~0.35
|
5~12
|
20~100
|
8
|
|
|
15
|
20~100
|
13
|
|
|||||||
|
8
|
20~100
|
21
|
|
|||||||
|
FX75
|
75
|
15
|
15~22
|
6~12
|
0.6
|
0.1~0.4
|
2~5
|
20~74
|
4.2
|
|
|
6
|
5~40
|
7
|
|
|||||||
|
FX50
|
50
|
15
|
11~16
|
3~8
|
0.3
|
0.1~0.4
|
1~2
|
10~74
|
2
|
|
|
6
|
5~30
|
2.5
|
|

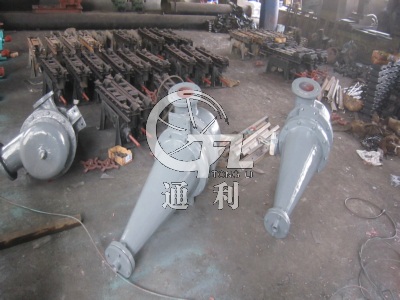

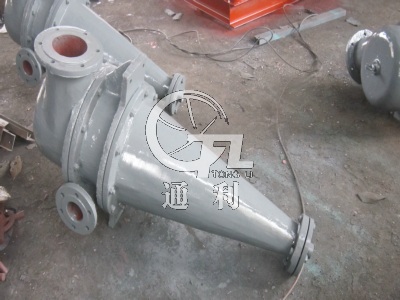

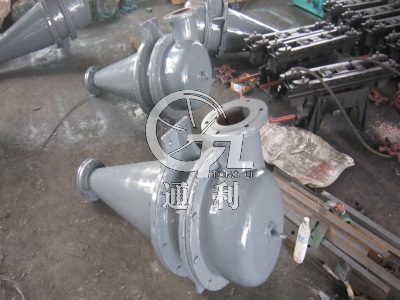

3,Application Scenarios
| Production Scenarios | Production Scenarios | Production Scenarios |
 |
 |
 |
