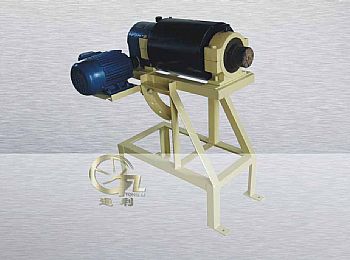

Laboratory Cone Ball Mill
1,Overview
This machine is a newly milling equipment. It is in the nature of high shell rotating speed, inner lining smoothly, high milling medium stowing ratio, many mediums, good grinding and polish effectiveness etc. Compared with the same kind of milling machine, it has stable operation, feeding and discharging controlled by motor, fast and convenient, the time of operating selected, well-distributed of the particle size, small over degree of grinding, high grinding efficiency, small power consumption of each unit of materials.
2,Technical Specifications
model
|
XQФ160X60
|
XQФ250X100
|
XQ Ф360X160
|
Volume of shell（L）
|
1
|
6.25
|
22
|
Quantity of grinding（G）
|
300
|
1000
|
4000
|
Feeding size（MM）
|
-3
|
-5
|
-5
|
Discharging size（MM）
|
-0.074
|
-0.074
|
-0.074
|
Shell rotating speed（R/MIN）
|
112±2
|
96±2
|
62±2
|
motor power（KW）
|
0.25
|
0.55
|
1.1
|
Ball load diameter（MM）
|
25 / 20 / 15
|
30 / 25 / 20
|
35 / 30 / 25 / 20
|
Quantity of ball load
|
22 / 35 / 63
|
40 / 58 / 90
|
50 / 68 / 99 / 154
|
weight of ball load（KG）
|
1.46 / 1.16 / 0.88
|
4.44 / 3.71 / 2.94
|
8.93 / 7.6 / 6.4 / 5.07
|
Overall dimension（MM）
|
920X550X1050
|
1055X650X1050
|
700X580X1080
|
Total weight（KG）
|
155
|
210
|
