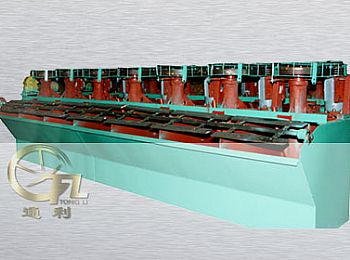

XJK Flotation Machine
1,Overview
XJK series of flotation machine can effectively make the low-grade ores become high- grade concentrates, especially for disseminated, complex ores, dealing with them can get better separation efficiency.
This series of flotation machine have the characteristic of less reagents consumption, large air rate, large capacity，easy maintenance, wear-resistant rubber of impeller and cover. It can be designed according to the users.
2,Technical specifications
Model
Parameters
|
XJK-0.13
(1A)
|
XJK-0.23
(2A)
|
XJK-0.35
(3A)
|
XJK-0.62
(4A)
|
XJK-1.1
(5A)
|
XJK-2.8
(6A)
|
|
Impeller Diameter (mm)
|
200
|
250
|
300
|
350
|
500
|
600
|
|
Impeller speed(r/min)
|
600
|
500
|
470
|
400
|
330
|
280
|
|
Capacity (m3/min)
|
0.05~0.16
|
0.12~0.28
|
0.18~0.4
|
0.3~0.9
|
0.6~1.6
|
1.5~3.5
|
|
Impeller
motor
|
Model
|
Y90L-4
|
Y100L-4
|
Y90L-4
|
Y132S-6
|
Y132M-6
|
Y160L-6
|
Power(kW)
|
1.5
|
3
|
1.5
|
3
|
5.5
|
11
|
|
Scraper
motor
|
Model
|
Y80L-4
|
Y80L-4
|
Y80L-4
|
Y90L-6
|
Y90S-4
|
Y90S-4
|
Power(kW)
|
0.55
|
0.55
|
0.55
|
1.1
|
1.1
|
1.1
|
|
Size (mm)
|
500×500×550
|
600×600×650
|
700×700×700
|
900×900×850
|
1100×1100×1000
|
1750×1600×1100
|
|
3,Application Scenarios

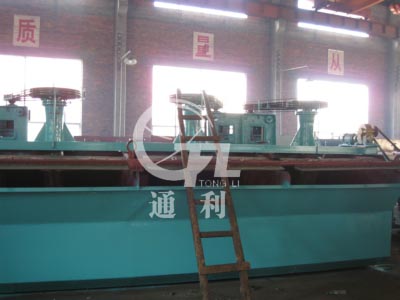

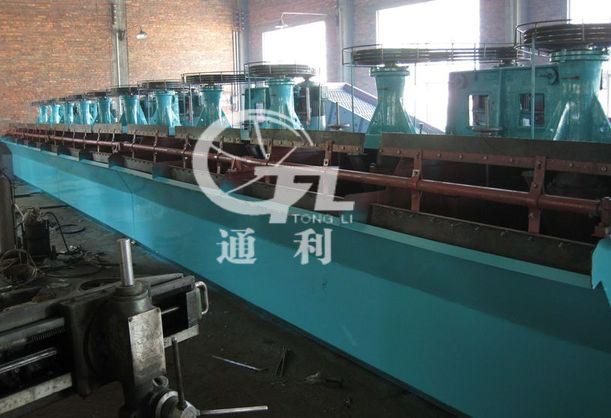

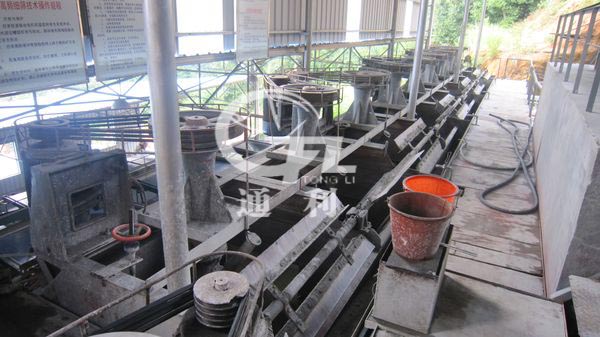

| Production Scenarios | Production Scenarios | Customer Scenarios |
 |
 |
 |
