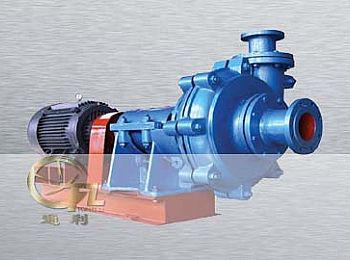

Sand Pump
1,Overview
The wear-resistant parts of over-current position, which have the vertical-type and horizontal-type, are produced with high-hard material. It has the long service life, reliable capability, easy operation and so on.
It is mainly used to convey concentrate slurry and discharge tailings in concentrators, to transport medium in coal preparation plants, to transmit the slurry which is easy to crystallize at high temperature in aluminum plants and transmit the slurry in cement plants.
2,Technical Specifications
|
Model
|
Lift
(m)
|
Flow
(m3/h)
|
Feed range
(mm)
|
Motor
|
Weight
(kg)
|
|
|
Model
|
Power
(kw)
|
|||||
|
XDSL-vertical-type sand pump
|
9
|
5
|
0-5
|
Y90L-4
|
1.5
|
157
|
|
XDSL-vertical-type sand pump
|
12
|
10
|
0-4
|
Y100L-4
|
3
|
205
|
|
PH- horizontal-type
sand pump
|
15
|
15
|
0-4
|
Y132M-4
|
7.5
|
300
|
|
PNL-vertical-type
sand pump
|
18
|
22
|
0-4
|
Y132M-4
|
7.5
|
480
|
|
PS- horizontal-type
sand pump
|
21
|
70
|
0-5
|
Y160M-4
|
13
|
430
|
|
PS- horizontal-type
sand pump
|
31
|
75
|
0-5
|
Y180L-4
|
22
|
570
|

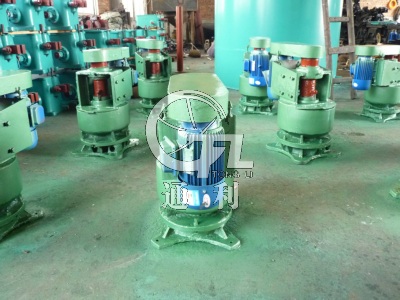

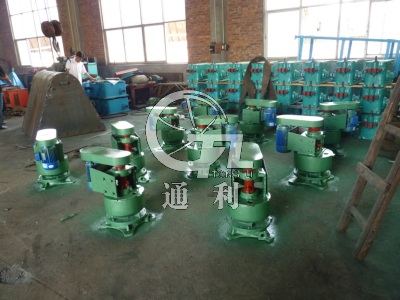

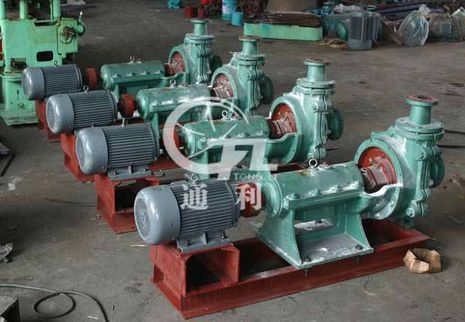

3,Application Scenarios
| Production Scenarios | Production Scenarios | Production Scenarios |
 |
 |
 |
