Fiber Reinforced Polymer(FRP) Table

1,Overview

    Shaker is widely used and effective gravity concentration device, its sorting part is a traditional wooden bed. Practice has proved that wooden bed is easily damaged, frequent maintenance, a short use, wood lacquer and other raw materials becoming gradual scarce, it is difficult to adapt to product development. So LS-type (6-S type) and other modern glass-steel bed are developed to replace the wooden bed. It is identified with advanced structure, good performance, reliable operation and an excellent beneficiation indicator. It is completely different in the material, structure and manufacturing processing, also is a major innovation to the traditional wooden bed. Therefore, it is determined to be mass production, extend and use.

2,Features

(1) Higher hardness and strength,lower deformation , Low water absorption,no weight increment .
(2) Work surface hard damage,well wear,less maintenance .
(3) No absorption of moisture and swelling,no rottenness,no worm-eaten .
(4) Chemical corrosion resistance,acid and alkali resistance,the agent in the pulp resistance , Sorting good performance,stability index .
(5) Good weather resistance,shape stability,non-cracking .
(6) The assembly size of the wooden bed retained,the two interchangeable installation .

Our company can arrange to manufacture according to the designed drawings and technical process, and its quality is controlled strictly to ensure the technical requirements of products. Welcome to order.

3,Application and performance

   It is widely applied in sorting ores range from 2 to 0.02mm, pyrite range from 4 to 0.02mm, in separating sludge levels of ferrous, non-ferrous, m rare and noble metal minerals such as tungsten, tin, tantalum, niobium, iron, manganese, chromium, titanium, bismuth, lead, gold and so on; after changing appropriately the form of bed, it can applied in sorting the slack coal and coal slime; also applied in separating mixed material with enough difference of gravity and particle size.

   And it could be used for different work such as rougher, cleaner and scavenger flotation, beneficiation the different grades of  coarse ore (0.5~2mm), fine ore(0.5~0.074mm) and slime(-0.074mm).

   The sorting mechanism is the same as wooden bed. Different proportion of sorted ores, differential movement provided by bed head, slope flow and different types of bed make the mineral particles group be loosen and layered, selectively transported, the ores form the fan-shaped zone on the bed, and then output the different products.

Both LS-type and YS-type have three kinds of bed, they are the rectangular bed dealing with the coarse ore,  the ladder bed dealing with the fine ore and the groove bed dealing with the mud-level ore. Users can choose freely.



4,Application Scenarios

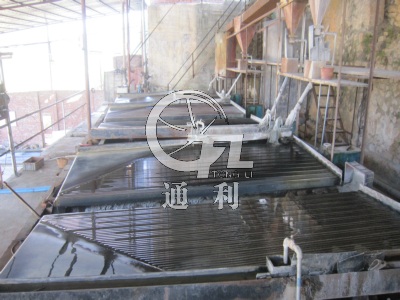

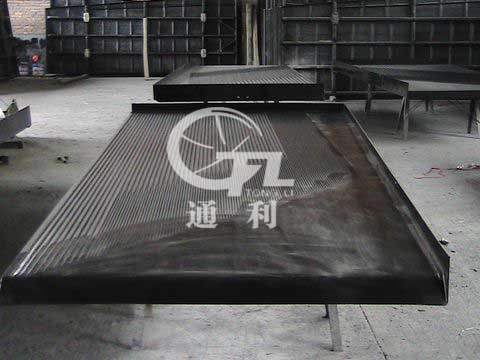

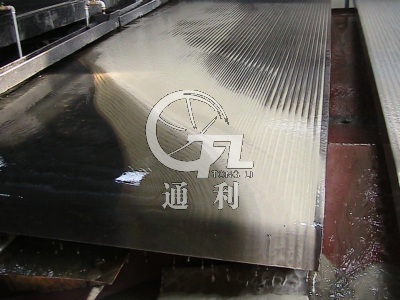

Production Scenarios	Customer Scenarios	Customer Scenarios
