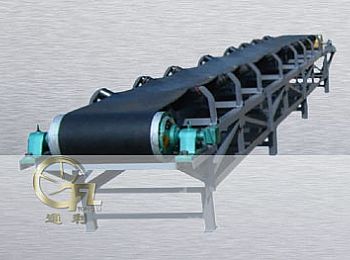

Belt Conveyor
1,Overview
Belt conveyor is widely used to transport powder, granular or graininess materials in metallurgical, mining coal, building materials, chemicals, power, transportation, grain and other departments. It is suitable for transporting coal, slag, salt, gravel, grain, ore and massive, granular and other bulk materials with bulk density between the 0.5 and 2.5 t/m3 at room temperature.
The performance of the belt conveyor ZSD-400,500,650,800 belt conveyor is driven with speed reducer of cycloid gear(if needing the oil-cooled motor and JZQ or ZQ gear reducer, please specify when ordering).
2,Features
(1) simple structure, large transport capacity, long distance .
(2) structure compact, light weight, moving convenience .
(3) reliable and easy maintenance .
3,Technical Specifications
|
Model
Parameters
|
ZSD-500
|
ZSD-650
|
ZSD-800
|
|
Belt Width(mm)
|
500
|
650
|
800
|
|
Roller bearing form
|
Trough roller
|
||
|
Drum Diameter(mm)
|
500
|
500
|
650(500)
|
|
Belt Speed(m/s)
|
1.2 (model 0.8, 1, 1.6, 2, 2.5)
|
||
|
Convey Inclination(°)
|
0-18(User provide data when ordering)
|
||
|
Capacity(t/h)
|
about 122
|
about 206
|
about 348
|
|
Power(kW)
|
According to order parameters
|
||
|
Convey Distance(m)
|
Supply according to user needs
|
||
4,Application Scenarios

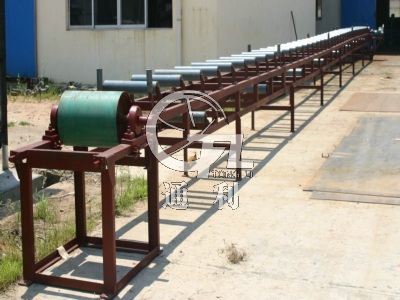

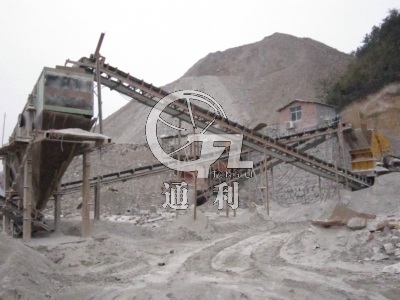

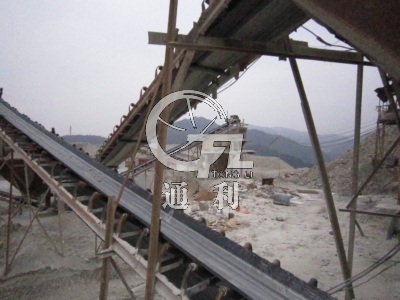

| Production Scenarios | Production Scenarios | Customer Scenarios |
 |
 |
 |
