Spiral Chute
1,Overview

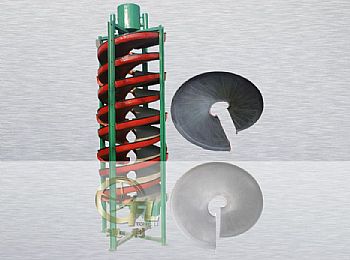

spiral concentrator is our company’s concentrating experienced scientific product, which is the best concentrating equipment, especially for concentrating sand ore in beach, riverside, seashore and stream.
The product is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; the advantages are light, moisture proof, anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment.
2,Application and Performance
spiral chute is new equipment with the domestic advanced level, successfully invented by Beijing General Research Institute of Mining and Metallurgy. It is applied for processing iron, tin, tungsten, tantalum, niobium, gold, coal, monazite, rutile, zircon and other metal, nonmetal minerals with enough specific gravity dispersion of granularity ranged from 0.02 to 0.3mm.

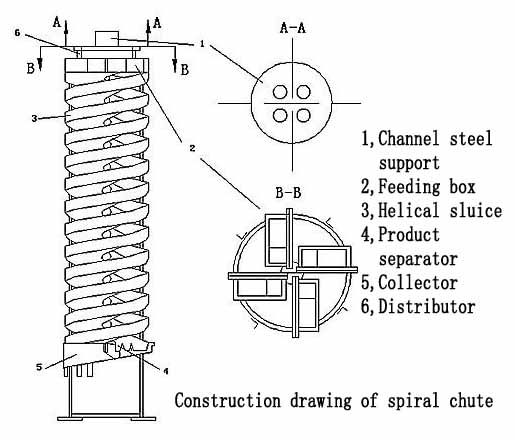

3,Construction Drawing |

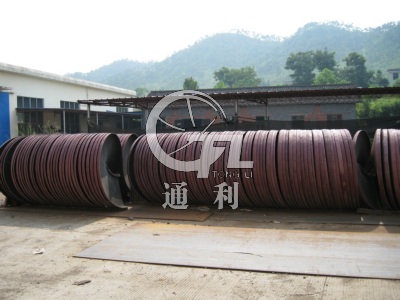

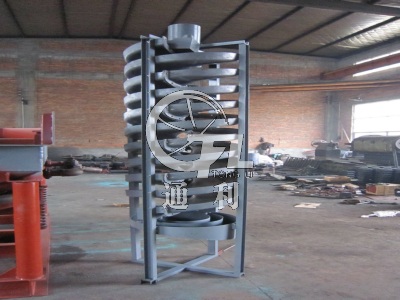

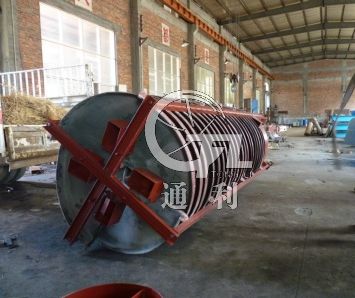

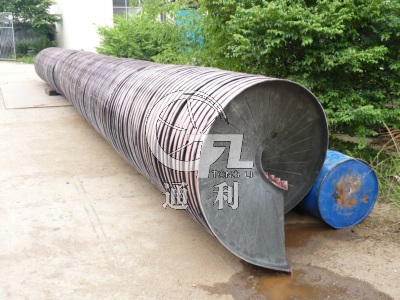

4,Manufacture Case |
 |
 |
5,Features
(1) Reasonable structure and small occupation area , Low operating cost and long working life .
(2) High recovery, high efficiency , precise separation , Non-required power .
(3) Light in weight, anti corrosion, rust and wear resistant , Reliable running with minimal operator attention .
(4) Simple installation and Minimal maintenance requirements .
(5) Strong adaptability to fluctuation of feeding amount, density, size and grade .
(6) The surface of corundum forms strong friction the concentration effect surpass plastic surface .
6,Technical Specifications
Our company uses the newest design and a complete set of technology organization produced and strict quality testing to guarantee each specification of spiral separator qualified.
We make the serialized with a special kind of grooved spiral separator to be selected by colored, ferrous metal mine, coal chemical industry, coal dressing, sulfur factory as well as the scientific research,the design department,the colleges and universities test chamber.
|
Model
|
5LL-1500
|
5LL-1200
|
5LL-900
|
5LL-600
|
BLL-2000
|
|
|
Diameter
(mm)
|
1500
|
1200
|
900
|
600
|
2000
|
|
|
Spiral Distance
(mm)
|
540,720,810
|
720,540
|
540,405
|
450,360
|
1200
|
|
|
Max Number Spiral
|
1-4
|
1-4
|
1-4
|
1-3
|
1-3
|
|
|
Feeding Range
(mm)
|
0.3-0.02
|
0.3-0.03
|
0.3-0.03
|
0.3-0.03
|
4-0.04
|
|
|
Feeding Density
(%)
|
25-55
|
25-55
|
25-55
|
25-55
|
20-45
|
|
|
Capacity
(t/h)
|
8--6
|
4--6
|
2--3
|
0.8-1.2
|
15-40
|
|
|
Outline Size
|
L(mm)
|
1560
|
1360
|
1060
|
700
|
2300
|
|
W(mm)
|
1560
|
1360
|
1060
|
700
|
2300
|
|
|
H(mm)
|
5260/4360
|
5260/4360
|
4000/3325
|
2600
|
6500
|
|
5,Application Scenarios
| Production Scenarios | Production Scenarios | Production Scenarios |
 |
 |
 |

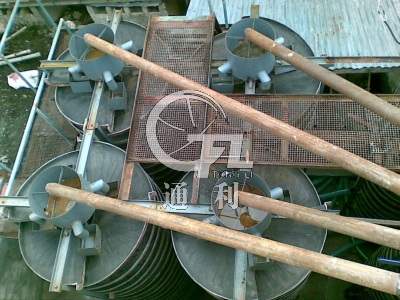

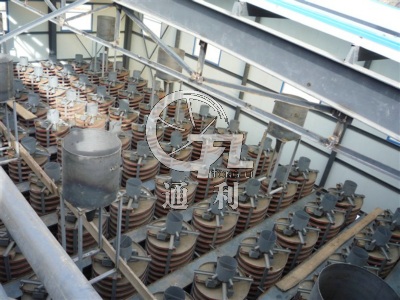

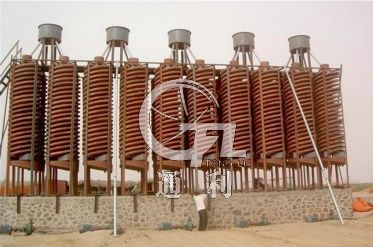

| Customer Scenarios | Customer Scenarios | Customer Scenarios |
 |
 |
 |
