SZZ Auto-Centered Vibrating Screen
1,Overview
SZZ series of auto-centered vibrating screen are mainly used to classification, dehydration, de-sliming and de-medium in metallurgy mine, coal, construction, chemical and other departments.
2,Features
(1) Large screening capacity, high screening efficiency
(2) Strong exciting force, Less power consumption
(3) Reliable structure, easy operation and maintenance
(4) sturdiness and durability, wide range of applications

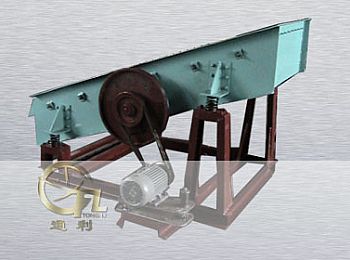

3,Structure and working principle
SZZ series of auto-centered vibrating screen is composed of mainframe, eccentric bock, screen web, rub spring, electric motor, coupler etc. It works with the eccentric of main shaft rotation when the spindle rotates, which makes the screen frame vibration of circular. By the motor force and adjusting the amplitude of the eccentric shaft, vibrating screen moves quickly like a circle. Materials in the sieve case can be seperated and screened from the sieve pore in this process.
4,Technical Specifications
Model
|
Layer
|
Max.
Feeding size
(mm) |
Sieve
Size (mm)
|
capacity (t/h)
|
Frequency (shift/mm)
|
Angle
(°)
|
Motor
(W)
Power
|
Dimension L*W*H
|
Weight (kg)
|
SZZ600×1200
|
1
|
40
|
1-25
|
10-20
|
1000
|
15-25
|
2.2
|
1370×890×330
|
340
|
SZZ2600×1200
|
2
|
40
|
1-25
|
10-20
|
1000
|
15-25
|
2.2
|
1370×890×430
|
360
|
SZZ900×1800
|
1
|
40
|
1-25
|
20-25
|
1000
|
15-25
|
2.2
|
2150×1358×575
|
550
|
SZZ2900×1800
|
2
|
40
|
1-25
|
20-30
|
1000
|
15-25
|
3
|
2489×1358×770
|
620
|
SZZ1250×2500
|
1
|
100
|
5-40
|
150
|
850
|
15-20
|
5.5
|
2762×1714×680
|
1100
|
SZZ21250×2500
|
2
|
150
|
5-40
|
150
|
850
|
15-20
|
5.5
|
2702×1714×740
|
1300
|
SZZ1500×3000
|
1
|
100
|
1-40
|
220
|
800
|
15-25
|
7.5
|
3320×1449×787
|
2100
|
5,Application Scenarios

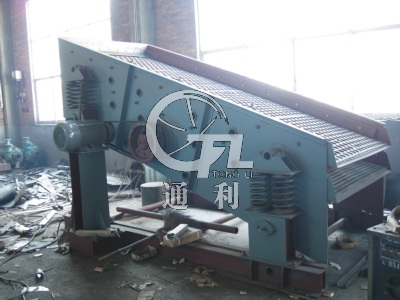

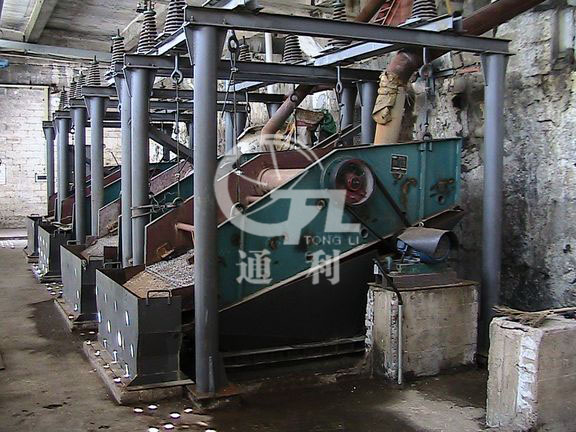

Customer Scenarios | Customer Scenarios | Customer Scenarios |
