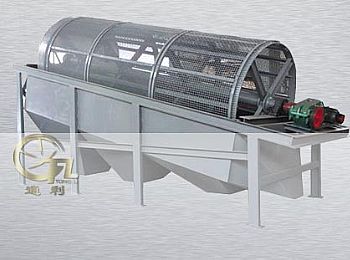

Trommel Screen

Product: trommel Screen

Type: GT series


1,Overview


     Material feeds into the drum, is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.

     The trommel screens provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

     Our Trommel screens are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.

     This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs

2,Features

(1) Configured for economical & efficient classification, Screening and grading .
(2) Heavy duty trommel drum with lifters at the front to facilitate material break up .
(3) Screen replaceable for different mesh sizes , Multiple screen size .
(4) Easily changed screen plates .
(5) Unique screen design, result in higher capacities, longer screen life and no material clogging .
(6) Heavy duty feed hopper and extension , Largest processing capacity in the industry .
(7) Discharge chute,Gear drive mechanism .

3,Technical Specifications

Model
Capacity
(t/h)
Power
(kw)
Drum diameter
(mm)
Drum length
(mm)
Screen size
(mm)
Dimension
(mm)
Weight
(kg)
GT1015
50
4.0
1000
1500
<310
3000*1400*2145
2200
GT1020
100
5.5
1000
2000
3460*1400*2145
2800
GT1225
160
7.5
1200
2500
4146*1600*2680
4200
GT1530
250
11
1500
3000
4460*1900*2820
5100
GT1545
350
15
1500
4500
5960*1900*3080
6000
GT1848
450
22
1800
4800
6500*2300*4000
7500
GT2055
600
30
2000
5500
7500*2500*4000
8600

4,Application Scenarios

Customer Scenarios Customer Scenarios Customer Scenarios

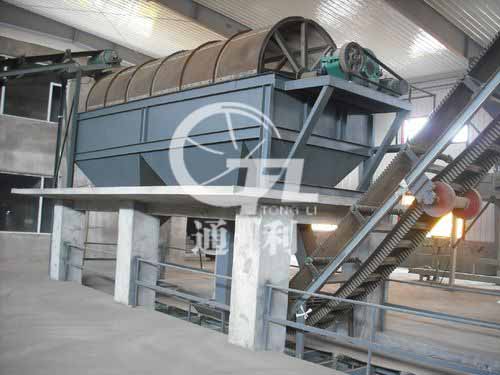

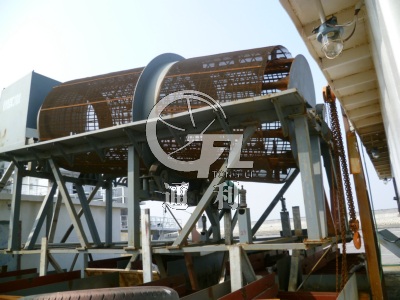

Trommel Screen Client Case Trommel Screen Client Case Trommel Screen Client Case
