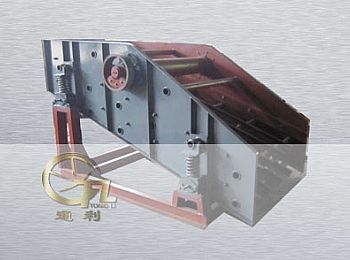

ZD Vibrating Screen
1,Overview
ZD series vibrating screen have 2 layers and 3 layers, can make screen, classification and dehydration etc. at a regular place
ZD series vibrating screen can make screen, classification and dehydration etc. at a regular place. It is mainly suitable for building sandstone plant, ore and coal dressing plant etc. The double deck screen may select out the ores in three grade. By adjusting the specification of screen mesh and screen deck, we can get final ores in different size to meet customer requirement.
We can offer specific design programme for customer including combination crusher, screen and belt conveyor, only if customer inform capacity required and size of final discharge ores.
2,Technical Specifications
|
Type
|
Screen Mesh
|
Max Feed
Size
(mm)
|
Capacity(t/h)
|
Frequency
(t/h)
|
Double Amplitude
(mm)
|
Motor
Power
(Kw)
|
Weight(kg)
|
|||
|
(m²)
|
(°)
|
(mm)
|
Layer
|
|||||||
|
2ZD918
|
1.62
|
15
|
1~25
|
2
|
150
|
30~60
|
860
|
s5~8
|
4
|
1400
|
|
2ZD1225
|
3.12
|
15
|
1~25
|
2
|
150
|
40~80
|
5.5
|
1310
|
||
|
ZD1230
|
3.75
|
15
|
5~100
|
1
|
≤200
|
50~100
|
5.5
|
1440
|
||
|
2ZD1230
|
3.75
|
15
|
5~100
|
2
|
≤240
|
50~100
|
5.5
|
1750
|
||
|
3ZD1230
|
3.75
|
15
|
5~100
|
3
|
≤240
|
50~100
|
7.5
|
2061
|
||
|
ZD1550
|
7.25
|
15
|
5~100
|
1
|
≤240
|
60~270
|
11
|
3100
|
||
|
2ZD1550
|
7.25
|
15
|
5~100
|
2
|
≤240
|
60~270
|
11
|
3500
|
||
|
3ZD1550
|
7.25
|
15
|
5~100
|
3
|
≤240
|
60~270
|
15
|
4035
|
||
|
4ZD1550
|
7.25
|
15
|
5~100
|
4
|
≤240
|
60~270
|
18.5
|
6000
|
||
|
ZD1850
|
9
|
17
|
5~150
|
1
|
≤300
|
120~350
|
11
|
4100
|
||
|
2ZD1850
|
9
|
15
|
5~150
|
2
|
≤300
|
120~270
|
15
|
4500
|
||
|
3ZD1850
|
9
|
15
|
5~150
|
3
|
≤300
|
120~270
|
18.5
|
5035
|
||
|
2ZD920
|
1.8
|
15
|
5~100
|
2
|
≤200
|
20~60
|
5.5
|
1050
|
||
|
ZD1535
|
5.25
|
15
|
5~100
|
1
|
≤240
|
60~270
|
7.5
|
2000
|
||
|
2ZD1535
|
5.25
|
15
|
5~100
|
2
|
≤240
|
60~270
|
7.5
|
2333
|
||
|
3ZD1535
|
5.25
|
15
|
5~100
|
3
|
≤240
|
60~270
|
7.5
|
2929
|
||
