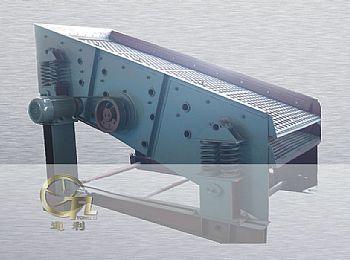

YA Vibrating Screen
Product： YA Vibrating Screen
Type: YA series
Type: YA series
1,Overview
Driven by rounding motion of vibrator, rounding vibration screen is widely applied in quarries and mines. It features adjustable amplitude, long dropping line, multiple options for screen requirements, big screen mesh with multi decks and high screen efficiency.
2,Working Principles
Through V-belt, motor drives the eccentric block to rotate with a high speed so to generate centrifugal force. Then the materials are thrown on and above the screen mesh. So the small size of products are omitted.
3,Technical Specifications
|
Model
|
Screen Deck
|
Screen
Area
(m2)
|
Screen Size (mm)
|
Screen Specifications (mm)
|
Max Side
Length of Feed (mm)
|
Processing Capacity
(t/h)
|
Vibration
Frequency
(r/min)
|
Double
Amplitude
(mm)
|
Motor
Power
(kw) |
Weight
(T)
|
|
2YA1230
|
2
|
3.70
|
3-50
|
1220×3050
|
200
|
10-90
|
800-970
|
8
|
5.5
|
2.34
|
|
3YA1230
|
3
|
3.70
|
3-80
|
1220×3050
|
200
|
30-90
|
800-970
|
8
|
7.5
|
3.05
|
|
2YA1542
|
2
|
6.10
|
5-50
|
1500×4200
|
200
|
50-180
|
970
|
8
|
15
|
5.33
|
|
2YA1548
|
2
|
7.10
|
5-50
|
1500×4800
|
200
|
50-190
|
970
|
8
|
15
|
5.50
|
|
3YA1548
|
3
|
7.10
|
5-50
|
1500×4800
|
200
|
50-200
|
970
|
8
|
15
|
6.08
|
|
4YA1548
|
4
|
7.10
|
5-50
|
1500×4800
|
200
|
50-200
|
970
|
8
|
18.5
|
6.75
|
|
3YA1848
|
3
|
8.70
|
5-80
|
1800×4800
|
200
|
50-250
|
970
|
8
|
18.5
|
6.93
|
|
4YA1848
|
4
|
8.70
|
5-80
|
1800×4800
|
200
|
50-260
|
970
|
8
|
22
|
7.10
|
|
2YA1860
|
2
|
10.8
|
5-80
|
1800×6000
|
200
|
50-280
|
970
|
8
|
18.5
|
7.20
|
|
3YA1860
|
3
|
10.8
|
5-80
|
1800×6000
|
200
|
50-300
|
970
|
8
|
18.5
|
7.70
|
