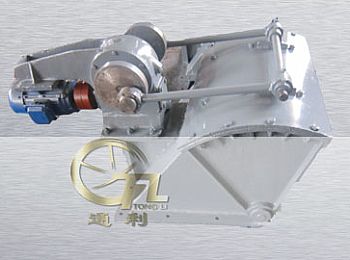

Swaying Feeder
1,Overview
Swaying feeder is widely used in mineral processing industry, coal industry,build materials industry, chemical industry and other industries. It is fit for feeding small particle materials in ore bin, especially fit for the feeding process of ball mill with belt conveyor. It is able to deliver blocky and granular materials from storage silo to receiving device evenly, regularly and continuously in the production process.
2,Features
(1) Simple structure, reliable operation, convenient installation and adjustment .
(2) The motor can be replaced by speed adjustment motor to adjust the feeding capacity according to the customers requirements .
(3) Low power consumption,Less noise and convenient maintenance, Its closed type structure can effectively prevent dust pollution .
(4) Stable vibrating, reliable performance and long working life .
3,Technical Specifications
|
Model
|
Motor
|
Max Feeding
Size
(mm)
|
Swaying
|
Capacity
(t/h)
|
Dimension
(mm)
|
Weight
(kg)
|
||
|
Model
|
Power
(kw)
|
Frequency
(t/min)
|
Stroke
(mm)
|
|||||
|
300×300
|
Y90S-4
|
1.1
|
25
|
68
|
0-90
|
0-8
|
950×455×435
|
200
|
|
400×400
|
Y90S-4
|
1.1
|
35
|
47
|
0-120
|
0-12
|
1050×550×560
|
260
|
|
600×600
|
Y90S-4
|
1.1
|
50
|
45
|
0-220
|
0-25
|
1295×820×745
|
560
|

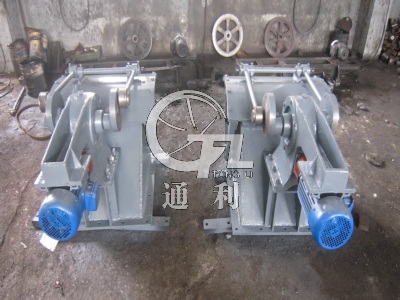

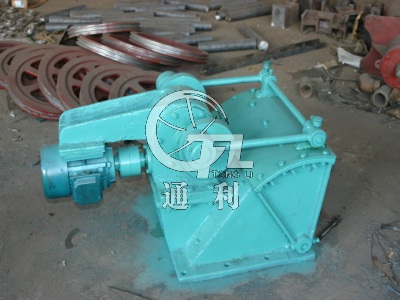

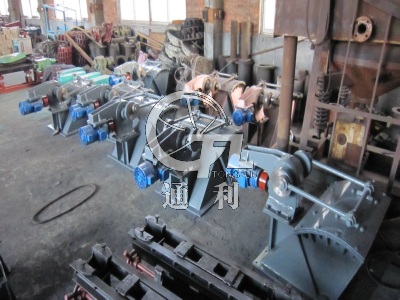

4,Application Scenarios
| Production Scenarios | Production Scenarios | Production Scenarios |
 |
 |
 |
