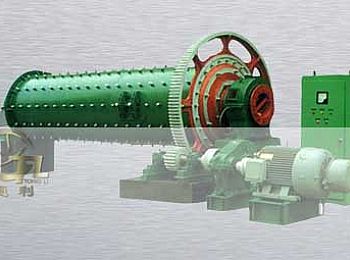

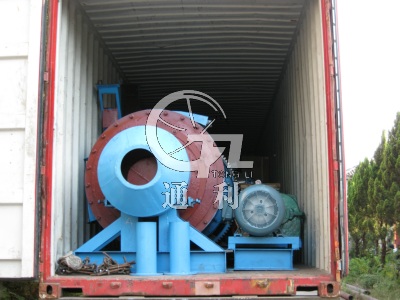

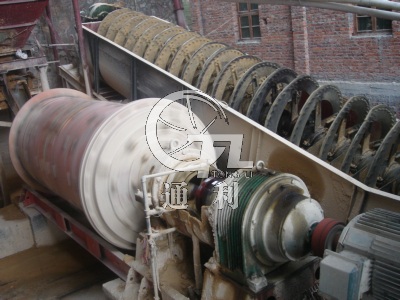

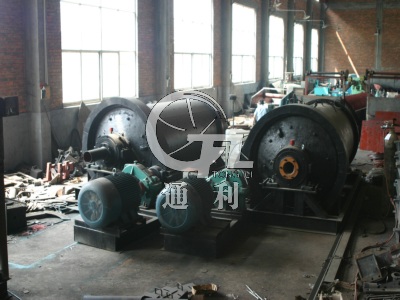

Ball Mill
1,Overview
Ball mill applies to grind all kinds of ores and other materials, widely used in mine-selection, building materials and chemical industry, etc. it can be divided into dry and wet two grinding ways. According to the different ways of discharging, it can be divided into grid type and overflow type.
2,Uses and application scope
Ball mill is the key equipment for crushing after the material has been broken. it is widely used in cement, silicate products, new building materials, refractory material, chemical fertilizer, black and non-ferrous metal and glass ceramics production industry, it grind all kinds of ores and other grind ability materials in dry or wet way
3,working principle
The ball mill is the horizontal tube rotating device, outer edge of the gear drive, two chambers, and lattice-type. By feeding device the materials evenly are fended into the first milling chamber through the hollow shaft. There are ladder lining plate or corrugated lining plate in the chamber, the mill containing different specifications steel-balls, the rotating of cylinder can make centrifugal force to the ball for a certain height of fall, they have a severe impact and abrasive effect on the materials. After coarse grinding in the first chamber, it will enter into the second chamber through single-layer partition plate, inner chamber is lined with plane liner which has steel-balls for further materials grinding. Powder discharged through the discharge grate plate to finish grinding operation.
4,Structure
The machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbling process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.
Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
5,Technical Specifications
|
Model
|
Shell rotation speed(r/min)
|
Ball load(t)
|
Feeding size(mm)
|
Discharging size(mm)
|
Capacity
|
Motor power(kw)
|
Weight(t)
|
|
(t/h)
|
|||||||
|
Ø900*1800
|
36-38
|
1.5
|
<=20
|
0.075-0.89
|
0.65-2
|
18.5
|
4.6
|
|
Ø900*3000
|
36
|
2.7
|
<=20
|
0.075-0.89
|
1.1-3.5
|
22
|
5.6
|
|
Ø1200*2400
|
36
|
3
|
<=25
|
0.075-0.6
|
1.5-4.8
|
30
|
12
|
|
Ø1200*3000
|
36
|
3.5
|
<=25
|
0.074-0.4
|
1.6-5
|
37
|
12.8
|
|
Ø1200*4500
|
32.4
|
5
|
<=25
|
0.074-0.4
|
1.6-5.8
|
55
|
13.8
|
|
Ø1500*3000
|
29.7
|
7.5
|
<=25
|
0.074-0.4
|
2-5
|
75
|
15.6
|
|
Ø1500*4500
|
27
|
11
|
<=25
|
0.074-0.4
|
3-6
|
110
|
21
|
|
Ø1500*5700
|
28
|
12
|
<=25
|
0.074-0.4
|
3.5-6
|
130
|
24.7
|
|
Ø1830*3000
|
25.4
|
11
|
<=25
|
0.074-0.4
|
4-10
|
130
|
28
|
|
Ø1830*4500
|
25.4
|
15
|
<=25
|
0.074-0.4
|
4.5-12
|
155
|
32
|
|
Ø1830*6400
|
24.1
|
21
|
<=25
|
0.074-0.4
|
6.5-15
|
210
|
34
|
|
Ø1830*7000
|
24.1
|
23
|
<=25
|
0.074-0.4
|
7.5-17
|
245
|
36
|
|
Ø2100*3000
|
23.7
|
15
|
<=25
|
0.074-0.4
|
6.5-36
|
155
|
34
|
|
Ø2100*4500
|
23.7
|
24
|
<=25
|
0.074-0.4
|
8-43
|
245
|
42
|
|
Ø2100*7000
|
23.7
|
26
|
<=25
|
0.074-0.4
|
8-48
|
280
|
50
|
|
Ø2200*4500
|
21.5
|
27
|
<=25
|
0.074-0.4
|
9-45
|
280
|
48.5
|
|
Ø2200*6500
|
21.7
|
35
|
<=25
|
0.074-0.4
|
14-26
|
380
|
52.8
|
|
Ø2200*7000
|
21.7
|
35
|
<=25
|
0.074-0.4
|
15-28
|
380
|
54
|
|
Ø2200*7500
|
21.7
|
35
|
<=25
|
0.074-0.4
|
15-30
|
380
|
56
|
|
Ø2400*3000
|
21
|
23
|
<=25
|
0.074-0.4
|
7-50
|
245
|
54
|
|
Ø2400*4500
|
21
|
30
|
<=25
|
0.074-0.4
|
8.5-60
|
320
|
65
|
|
Ø2700*4000
|
20.7
|
40
|
<=25
|
0.074-0.4
|
12-80
|
400
|
94
|
|
Ø2700*4500
|
20.7
|
48
|
<=25
|
0.074-0.4
|
12-90
|
430
|
102
|
|
Ø3200*4500
|
18
|
65
|
<=25
|
0.074-0.4
|
-----
|
800
|
137
|
