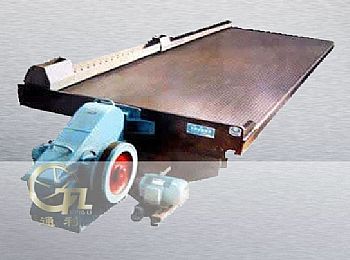

Yunxi Shaking Table

Product: Yunxi shaking table

Type: Yunxi series


1,Overview

    The whole production drawings of Yunxi shaking table is produced in strict accordance with the standard drawings of Yunnan tin industry corporate. This type of shaking table is mainly applied in different non-ferrous metallic ores.     Particularly in the multi-metal ores, it can be played its most effective function. It can be used to gravity separation and cleaner flotation of the less than 2mm non-ferrous metals. Many year’s practices prove that Yunxi Shaking Table has stable performance, high efficiency, low noise, convenient using and maintenance. It is deeply welcomed by customers.

2,Structure and working principle

    It is composed of bed, bed head and sliding device. The bedstead and feed lauder are made up the bed. Bed has two types (coarse bed and groove bed). According to particle sizes and density, the proper bed type is chosen (attached forms). Bed is connected by the hook on the bed of bed head, supports in the sliding device. With the pushing of bedside, the bed moves back and forth to beneficiation.
    The eccentric roller which is driven by the eccentric shaft makes rocker support arm moving. The rocker support arm fork drives the joint T-screw, which makes screw move back and forth. Bed head lubricant bearing uses the ZQSN5-5-5 material as sliding bearings, which has low noise and moving neatly characteristics.
    Slide device is mainly used to adjust the slope of mineral processing equipment, bed generates the slop using hand wheel to adjust slant splint.

3,Technical Specifications

Name
Model
Technical Data
Bed Size
4500×1830×1560
m/m
Shaker type
stroke
(m/m)
Frequency
(r/min)
Water consumption
(Mз/set day)
Capacity
(T/set day)
Outline Size
5454×1825×1242
m/m
Adjustable-stroke
8-22 m/m
Coarse sand bed
16-22
240-290
190
30
Motor
JO2-31-61.5
kW
Fine sand bed
10-16
300-320
80
8
Weight
1012 kg
Slime
10-16
330-340
50
8

4,Using and maintenance

    After using the Yunxi shaker, maintenance and repairing is necessary, its parts in good condition can not only affect the dressing performance and efficiency indicators, but also increase its life expectancy.
The general notes on the use of shaker
(1) Bed’s paint has a brittle, can not bear the strong beat and collision.
(2) Avoiding the bed paint crushed and deformed, high temperature and heavy objects can not be placed on.
(3) To prevent the bed deformation caused by the water penetration affecting the paint swollen, the bed is strictly prohibited to nail.
(4) In order to ensure flow membrane uniform, oil pollution in the bed should be avoided.
(5) In order to maintain the manufacture quality of table, the bed must be special attention to in handling, stacking and installation process.  General requirements are to avoid sideward because of unevenness or overlapping when transporting and stacking, make the feed side down, and prevent the sun and rain.

5,Application Scenarios

Production Scenarios Customer Scenarios Customer Scenarios

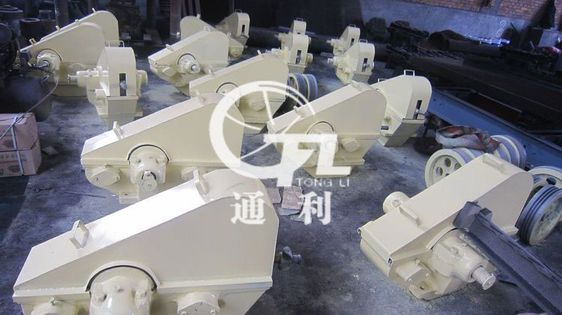

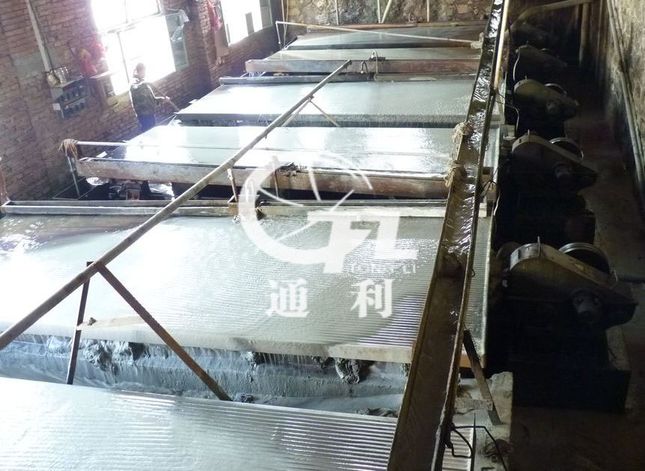

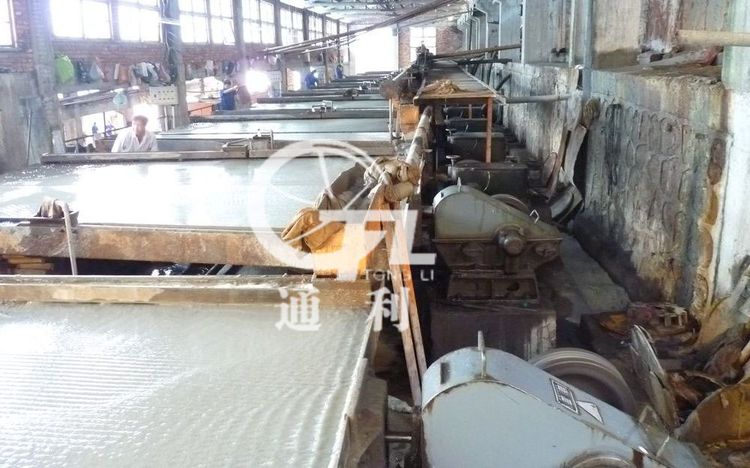

Yunxi shaking table Manufacture Case Yunxi shaking table Client Case Yunxi shaking table Client Case
