Magnetic Separator

Product: magnetic Separator

Type: CT series



1,Overview

    The Magnetic Separator is suitable for wet magnetic separation of materials such as magnetite, calcined ore, etc. and it can remove the iron in the coal, non-metal and construction industries. The magnetic system is made from high quality ferrite magnetic materials and /or rare earth magnet steel. On the shell surface, the magnet intensity is 100-600mt. The wet type permanent magnet cylindrical separator is commonly used for iron ore separation. It is suitable for separating materials with high magnetism. In recent years, it has been used as concentrating equipment in place of magnetic dewatering cell.
Advantages:
It has the following advantages: short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, fine beneficiating results, simple structure and easy to maintain.

2,Technical specifications


Model

Shell diameter (mm)

Shell length (mm)

Shell rotation speed (r/min)

Feeding size (mm)

Capacity (t/h)

Power (kw)

CTB6012

600

1200

<35

2-0

10-20

1.5

CTB6018

600

1800

<35

2-0

15-30

2.2

CTB7518

750

1800

<35

2-0

20-45

2.2

CTB9018

900

1800

<35

3-0

40-60

3

CTB9021

900

2100

<35

3-0

45-60

3

CTB9024

900

2400

<28

3-0

45-70

4

CTB1018

1050

1800

<20

3-0

50-75

5.5

CTB1021

1050

2100

<20

3-0

50-100

5.5

CTB1024

1050

2400

<20

3-0

60-120

5.5

CTB1218

1200

1800

<18

3-0

80-140

5.5

CTB1224

1200

2400

<18

3-0

85-180

7.5

CTB1230

1200

3000

<18

3-0

100-180

7.5

3,Application Scenarios

Production Scenarios Customer Scenarios Customer Scenarios

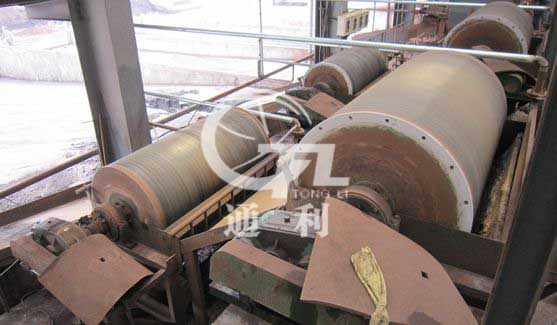

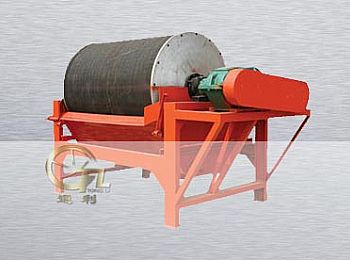

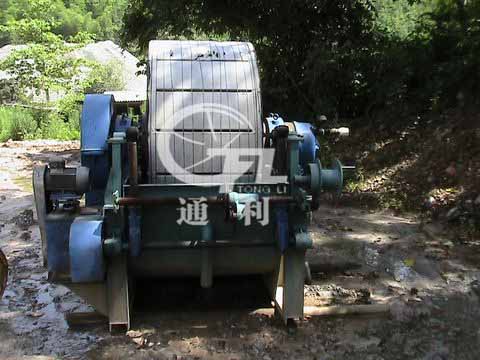

CT Magnetic Separator Production Scenarios CT Magnetic Separator Customer Scenarios CT Magnetic Separator Customer Scenarios
