Stirring Trough
1,Overview
Stirring trough is applied to stir the slurry of concentration not more than 30% and solid granularity particle size less than 1mm in floating, gravity concentrating and wet-type magnetic separation. It is also used to mix floatation agents and other non-metal minerals.
Stirring trough has the characteristic of small power, high efficient, uniform mixing, better dispersion, simple structure, easy maintenance and reliable operation. It is applied in different production-scale plant of CIP gold extraction process.
2,Technical Specifications
|
Standard Model
|
XB-500
|
XB-1000
|
XB-1500
|
XB-2000
|
XB-2500
|
XB-3000
|
|
|
Effective Volume（m3）
|
0.124
|
0.58
|
2.2
|
5.46
|
11.2
|
19.1
|
|
|
Impeller
|
Diameter（mm）
|
150
|
240
|
400
|
550
|
650
|
700
|
|
Speed（r/min）
|
1000
|
530
|
320
|
230
|
280
|
210
|
|
|
Motor
|
Model
|
Y100L-4
|
Y132S-6
|
132M-6
|
Y160M-6
|
180L-6
|
Y225S-8
|
|
Power（kw）
|
1.5
|
3
|
5.5
|
7.5
|
15
|
18.5
|
|
|
Internal
Size of Trough
|
Diameter（mm）
|
Φ500
|
Φ1000
|
Φ1500
|
Φ2000
|
Φ2500
|
Φ3000
|
|
Height（mm）
|
750
|
1000
|
1500
|
2000
|
2500
|
3000
|
|
|
Dimensions
|
Length
(mm)
|
670
|
1130
|
1750
|
2380
|
3028
|
3610
|
|
Width（mm）
|
351
|
1130
|
1642
|
2162
|
2640
|
3266
|
|
|
Height（mm）
|
1286
|
1491
|
2186
|
2846
|
3543
|
4326
|
|
|
Weight（t）
|
0.375
|
0.685
|
1.2
|
1.65
|
3.462
|
4.292
|
|
3,Application Scenarios

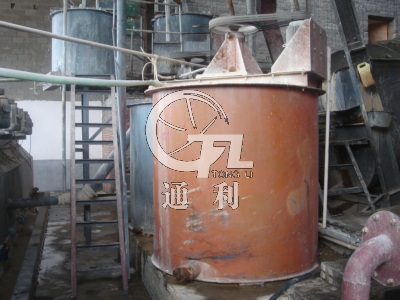

| Production Scenarios | Production Scenarios | Customer Scenarios |
 |
 |
 |
